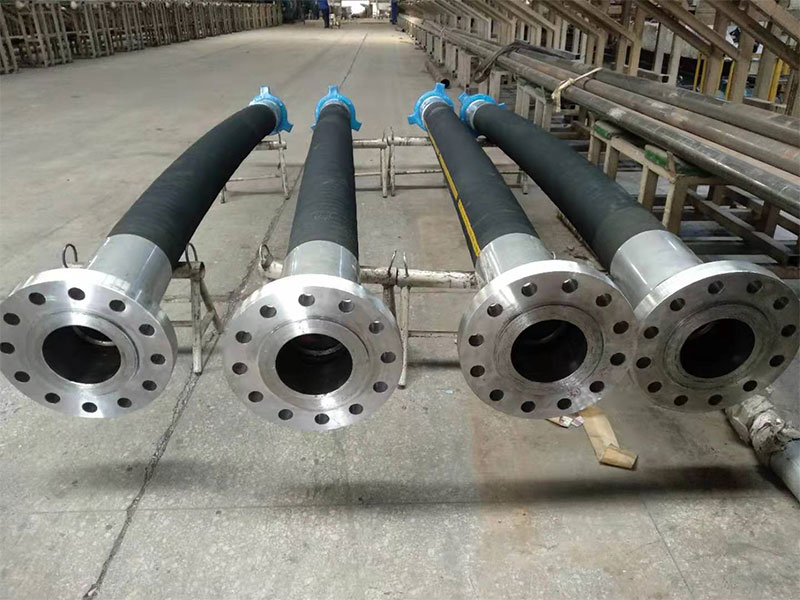

The BOP (Blowout Preventer) control hose is a critical flexible actuator in the well control system, connecting the hydraulic control unit to the BOP body. During drilling operations, it plays a crucial role in the final response of wellhead pressure control. In the event of abnormal downhole pressure or signs of overflow, this hose must transmit the hydraulic pressure to the BOP within a very short time, driving the gate or annular rubber core to seal the wellhead. Therefore, this hose not only requires the pressure resistance and sealing performance of conventional hydraulic hoses but also must maintain functional integrity under extreme accident conditions such as fires, providing a reliable operating window for well control emergency response.
The core technical specification followed by this product is API Spec. 16D, which systematically defines the design, manufacturing, testing, and certification requirements for drilling rig control equipment and shunt control systems. Some products also undergo supplementary verification with API 7K and Lloyd's Register fire resistance testing procedures. The API 16D standard clearly defines the fire resistance testing procedures for hose assemblies, requiring verification of the product's pressure integrity under simulated fire conditions.
II. Product Structure and Material Design Typical BOP control hoses employ a multi-layer composite structure design, with each functional layer working synergistically to achieve high-pressure load-bearing capacity, fire resistance, and media compatibility. The mainstream industry structure includes the following layers:
Inner Layer (Inner Rubber Layer): Primarily made of NBR (Nitrile Butadiene Rubber) or HNBR (Hydrogenated Nitrile Butadiene Rubber), possessing oil resistance, drilling fluid resistance, and flame retardant properties, preventing hydraulic media penetration and resisting chemical corrosion. HNBR performs better than ordinary NBR in terms of high-temperature aging and corrosion resistance, and its suitability for environments containing hydrogen sulfide is also more outstanding.
Reinforcing Layer: Employs a multi-layer high-strength steel wire spiral winding structure, commonly 4 or 6 layers of high-strength ultra-flexible steel wire winding, capable of operating pressures exceeding 5000 psi, achieving a balance between high-pressure load-bearing capacity and flexible bending performance. This structural design balances high-pressure bearing capacity and flexible bending performance, meeting the spatial constraints of complex piping layouts on drilling platforms.
Fire-resistant Insulation Layer: A fire-resistant insulation material is added between the reinforcing layer and the outer layer, forming a composite fire-resistant barrier. This layer, working in conjunction with the stainless steel armor, ensures the product maintains pressure integrity under open flame conditions.
Outer Layer (Outer Rubber Layer): Made of high-temperature resistant, fire-resistant synthetic rubber, it directly withstands external heat radiation and flame impact. An additional stainless steel armor layer can be added to the outer layer to enhance resistance to mechanical damage and, in a fire, reflect heat radiation through the metal layer, delaying heat transfer to the inner layers.
End Connections: Connections must be crimped, and the crimped area must be covered with fire-resistant tape or a metal sleeve to ensure the connection also meets fire resistance requirements. Connection types include hammered unions and flanges, adaptable to different interface forms.
III. Key Performance Parameters
Working Pressure and Safety Factor: Taking a typical API 16D product as an example, the nominal working pressure is 5000 psi (approximately 34.5 MPa), the verified pressure is 7500 psi (approximately 51.7 MPa), and the burst pressure is not less than 15000 psi (approximately 103.4 MPa). Some products offer operating pressures ranging from 5000 psi to 15000 psi, adaptable to various well control system requirements. Burst pressure is typically three times the operating pressure, providing ample safety margin.
Fire Resistance: The core performance indicator is no leakage for 5 minutes under open flame conditions at 704℃±50℃. This indicator is derived from the requirements of API 16D and Lloyd’s Register fire protection test procedures, simulating the continuous operating time required for emergency well shut-in operations under drilling platform fire conditions. Some products can withstand higher temperature conditions, but compliance determination still adheres to the test conditions specified in API 16D.
Operating Temperature Range: Under normal operating conditions, the applicable ambient temperature is approximately -40℃ to +100℃, with some products extending to +121℃ or +150℃. Low-temperature performance is practically significant for drilling operations in polar or high-altitude regions.
Bending Radius: Depending on the hose inner diameter, the bending radius generally ranges from 300 mm to 800 mm, with a positive correlation to the nominal diameter. This parameter directly affects the bending flexibility and space adaptability of the piping installation.
Specification Series: Commonly used inner diameter specifications include 1/2 in, 3/4 in, 1 in, 1-1/2 in, 2 in, etc., covering various control loop requirements from annular blowout preventers to gate blowout preventers.
IV. Design and Manufacturing Compliance Requirements
API Spec. 16D standard sets forth system performance qualification and quality control requirements for BOP control hoses. Compliance points include, but are not limited to:
Fire Resistance Test Procedure: The hose assembly is subjected to an open flame exposure test at a specified temperature (approximately 704°C) and rated operating pressure for 5 minutes. No leakage is allowed during or after the test. Pressure changes must be continuously monitored during the test; any pressure drop or external leakage indicates non-compliance.
End Connection Verification: The crimping area of the connector must be covered with fire-resistant tape or a metal sheath to ensure that the connector also meets fire resistance requirements. The hose assembly is certified as a whole; connector performance and hose body performance must be verified together.
Quality Management System: Manufacturers must obtain API Q1 quality management system certification and product type approval from a third-party classification society. API Q1 certification covers all quality elements throughout the entire process, including design control, document management, procurement control, production process monitoring, and handling of non-conforming products.
Material Compatibility: For products used in hydrogen sulfide-containing environments, the material's resistance to sulfide stress cracking must be controlled. Both the inner adhesive layer and the metal reinforcement layer must meet the corresponding corrosion resistance requirements.
