In engineering and mining operations, hydraulic systems are a key link in ensuring efficient operation of equipment. The safety, stability, and efficiency of hydraulic oil transportation often depend on the selection of transportation pipelines. Four layer and six layer steel wire spiral high-pressure hoses have become the preferred choice for hydraulic oil transportation due to their excellent performance. These rubber hoses not only work under extremely high pressure, but also have excellent wear resistance, corrosion resistance, and flexibility, making them widely used in heavy equipment such as excavators and mining machines.
1、 Structural analysis of four layer and six layer steel wire spiral high-pressure rubber hoses
The structural design of high-pressure rubber hoses directly affects their effectiveness and lifespan. In the design of four layer and six layer steel wire spiral high-pressure rubber hoses, optimization is usually carried out based on their application environment and requirements.
1. Four layer steel wire spiral high-pressure rubber hose:
-First layer: The inner layer is made of oil resistant and wear-resistant rubber material, which can quickly adapt to the flow of hydraulic oil and reduce friction losses.
-Second layer: The reinforcement layer is composed of high-strength braided steel wire, which can withstand the internal pressure brought by hydraulic oil.
-The third layer: The isolation layer is made of special rubber material to prevent oil penetration and external environmental erosion.
-Fourth layer: The outer layer is also made of wear-resistant and weather resistant rubber material, which has strong UV resistance and is suitable for use in harsh outdoor weather conditions.

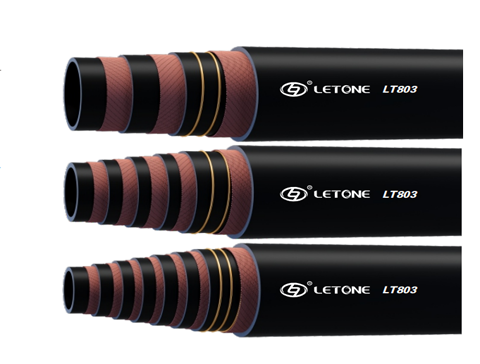

2. Six layer steel wire spiral high-pressure rubber hose:
-Structurally similar to a four layer rubber hose, but with two additional reinforcement layers.
-Enhancement layer: More steel wire layers make the entire hose more pressure resistant and durable, allowing it to work for long periods of time in ultra-high pressure and various extreme working environments.
-Flexibility performance: Although the number of layers increases, appropriate material selection and design can maintain good flexibility and meet the needs of complex working conditions.
2、 Application areas and advantages
The four layer and six layer steel wire spiral high-pressure rubber hoses are mainly used in hydraulic systems such as excavators and mining machines. Their outstanding advantages are reflected in the following aspects:
1. High pressure bearing capacity: Due to its excellent hierarchical structure design, the four layer and six layer rubber hoses can withstand pressures up to 40MPa or even higher, ensuring the normal operation of the hydraulic system and reducing the risk of system failure.
2. Wear resistance and corrosion resistance: The steel wire reinforced structure significantly enhances the wear resistance of the inner and outer surfaces of the rubber hose. In mining operations, the environment in which rubber hoses come into contact is often harsh, and rubber hoses with strong corrosion resistance can effectively extend their service life.
3. Safety: Working in high-pressure environments, safety is crucial. The design of four and six layers improves the rupture resistance of the hose, further enhancing safety assurance.
4. Wide adaptability: Whether working indoors or outdoors, it can demonstrate excellent flexibility and stability.
3、 How to choose a suitable high-pressure hose
When choosing a four or six layer steel wire spiral high-pressure hose, the following factors need to be considered comprehensively:
1. Purpose analysis: Clarify the specific purpose of the pipeline to select appropriate specifications and pressure levels.
2. Environmental factors: Select materials based on the working environment (such as temperature, humidity, chemical corrosion, etc.).
3. Fluid type: Ensure the compatibility of the hose with the liquid being transported, and avoid pipeline damage caused by unsuitable materials.
4. Bending radius of pipeline: In the design, the direction and bending requirements of the pipeline need to be considered to avoid pipeline failure caused by excessive bending.
4、 Maintenance and upkeep
Regular maintenance and inspection are crucial to ensure the service life of the four layer and six layer steel wire spiral high-pressure rubber hoses
1. Regular inspection: Regularly visually inspect the rubber hose, especially the connection parts, to detect any leakage, rupture, or other phenomena.
2. Temperature monitoring: The temperature of hydraulic oil delivery needs to be maintained within a reasonable range. Excessive temperature may cause deformation or even failure of the hose.
3. Cleaning and maintenance: During operation, debris should be avoided from entering the inside of the hose, and regular cleaning should be carried out to maintain its cleanliness.
4. Storage conditions: High pressure rubber hoses should be stored in a cool and dry place when not in use, avoiding direct sunlight and humid environments to extend their lifespan.
5. Conclusion
As the preferred choice for hydraulic oil transportation in excavators and mining machines, four layer and six layer steel wire spiral high-pressure hoses have become industry standards due to their excellent performance and outstanding durability. Understanding its structural characteristics, application advantages, and how to select and maintain it can effectively improve the efficiency and safety of the equipment. In the future applications of heavy machinery, this high-pressure hose will continue to play a pivotal role, supporting the sustainable development of engineering and mining.
